Din 975 Threaded Rod With Metric Thread manufacturer in india, check Specification and Price in Mumbai

Din 975 Threaded Rod



Your need for Metric Din 975 Threaded Rods of standard size ends here, We provide the best quality

Din standards are issued by the Deutsches Institut für Normung, or as they are known in English as German Institute for Standardization. The use of DIN standards such as one for Din 975 Threaded Rod is common in those parts of the world, where there is no corresponding ISO equivalent. Though the ISO standards are making transitions across countries like Germany, England, and some parts of Europe. The length of a Din 975 Threaded Rod With Metric Thread is about 1m long.

The construction of these rods is threaded along their entire length. The resemblance of the Metric Din 975 Threaded Rods is to that of a threaded shaft of either a screw or bolt fasteners. However, unlike either fastener, the threaded shaft of these rods tend to be longer. Unlike a screw or bolt, the Din 975 Threaded Rod Standard does not have a head part, which is also the reason these fasteners are known as all thread rod or an ATR.

Other names for a threaded rod include continuously threaded rod or redi-rod or even fully threaded rod. Designed for use in tension joining and/or as a stabilizing fastener, the manufacture of Metric DIN 975 threaded rods is possible using conventional alloys such as steel as well as stainless steel grades A2 (alloy 304 ) and A4  (alloy 316).

before buy from india Compare Din 975 Threaded Rod price with Stainless Steel Threaded Rod price list





Specification List of DIN 975 Threaded Rod
Dimensions
ASME B18.2.1, B18.3
Melt Origin
South America/East Europe/JapanKorea/
Product Origin
Made in India
Threads Configuration
ASME B1.1 2A/3A Inch Unified Threads and B1.13M 6h Metric Coarse Threads
Certification
Dual Certified As per ASTM & ASME Codes
Additional Certifications
PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Mandatory Requirements
Free from Mercury & Radioactive Contamination
Additional Requirements
NACE MR0103 / MR0175 / ISO 15156 Compliance



Din 975 Threaded Rod Price
Description Per Unit (INR) Price in USD Price in EURO
Din 975 Threaded Rods, Grade 4.8, Zinc Plated, M 6x20001000 Pcs (Fixation Material) Of Ms 57 0.77 0.63
Din 975 Threaded Rods, Grade 4.8, Zinc Plated, M 8x20006000 Pcs (Fixation Material)of Ms 47 0.64 0.52
Din 975 Threaded Rods, Grade 4.8, Zinc Plated, M 10x20005000 Pcs (Fixation Material) Of Ms 45 0.61 0.50
Din 975 Threaded Rods, Grade 4.8, Zinc Plated, M 16x2000200 Pcs (Fixation Material) Of Ms 46 0.62 0.51
Din 975 Threaded Rods, Grade 4.8, Zinc Plated, M 12x20001600 Pcs (Fixation Material) 45 0.61 0.50
10500003-2.0 Threaded Rod 5(Cut Size) 10-24x2 A Steel Grade5(Min) (Parts For Resistance Welder)(For Captive Use) 39 0.53 0.43
10500005-2 Threaded Rod 25inch-20x2.0inch A Steel Grade 5(Min) (Parts For Resistance Welder)(For Captive Use) 55 0.75 0.61



Packaging Metric Din 975 Threaded Rods
Packaging Metric Din 975 Threaded Rods
Packaging Metric Din 975 Threaded Rods

Bulk in cartons on wood pallet or according to customer special demand.



Check dimensions & size chart of m24 din 975 threaded rod ex Mumbai



din 975 threaded rod standard
Tech.Standards Material Grade Size Finish
Thread rod DIN/ASTM 1008 GB Standard 4.8Grade
ASTM Standard Grade2
M2-M120
1/2-5"
ZINC,HDG,Black
Hs3404 ASTM193/A193M GB Standard
40Cr 35CrMo 25CrMoVA
0Cr18Ni9,0Cr17Ni12Mo2 etc
ASTM standard
Alloy and stainless steel
GB standard
Grade8.8,10.9,12.9 A2-70,A4-70
ASTM Standard
B5,B7,B7M,B8,B8M,B16 L7,L7M,BC,BD,660A,660B,651A,651B
GBstandard
M12-M120
ASTM Standard
1/2-5"
Black,zinc plated HDG,Cadmium
Plated, Dacromet,Passivation
(PTFE,FEP PFA ETFE)
HG/T20634 ASTM320/A320M
HG/T20613 ASTMA354
JB/T4707 ASTMA453




















SH3404 ASTMA194/194M GB Standard
40Cr,35CrMo,25CrMoVA,0CR18Ni9,45#,0Cr17Ni12Mo2
ASTM Standard
Alloy and stainless steel
GB Standard
Grade8,10,A2-70,A4-80
ASTM Standard
660A 660B 651A,651B 2H,2HM,4,6.7,8,16O,A,B,C,D,DH
GB or DINstandard
M12-M120
ASTM Standard
1/2-5"
Black,zinc plated HDG,Cadmium
Plated, Dacromet,Passivation
(PTFE,FEP PFA ETFE)
HG/T20613 ASTMA563/563M
HG/T20634

HG/T21573.3

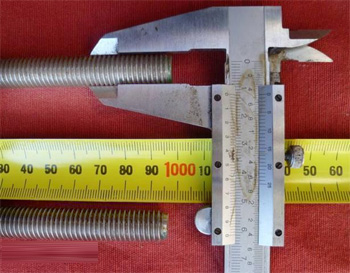

Testing done m24 din 975 threaded rod
Testing done m24 din 975 threaded rod
  • Positive Material Identification Test
  • Hardness Test
  • Tensile Testing Machine
  • IGC Test









Coarse/Fine Thread of Din 975 Threaded Rod
  • R001 – 975-4.6 Bare Steel
  • R002 – 975-4.6 Zinc Plated
  • R007 – 975-4.6 Bare Steel Left Hand Thread
  • R003 – 975-8.8 Bare Steel
  • R103 – 975-8.8 Hot Dipped Galvanized (ISO FIT)
  • R005 – 975-B7 Bare Steel
  • R006 – 975-10.9 Bare Steel



Coarse Thread
4.6 8.8 B7 10.9
Bare Steel Zinc Bare – Left Hand Bare Steel H.D.G Bare Steel
Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order # Pkg. Order #
M2 1 R001-002-0000
M2.5 1 R001-2.5-0000
M3 1 R001-003-0000
M4 1 R001-004-0000 1 R002-004-0000
M5 1 R001-005-0000 1 R002-005-0000 1 R003-005-0000
M6 1 R001-006-0000 1 R002-006-0000 1 R007-006-0000 1 R003-006-0000 1 R006-006-0000
M7 1 R002-007-0000
M8 1 R001-008-0000 1 R002-008-0000 1 R007-008-0000 1 R003-008-0000 1 R103-008-0000 1 R005-008-0000 1 R006-008-0000
M10 1 R001-010-0000 1 R002-010-0000 1 R007-010-0000 1 R003-010-0000 1 R103-010-0000 1 R005-010-0000 1 R006-010-0000
M12 1 R001-012-0000 1 R002-012-0000 1 R007-012-0000 1 R003-012-0000 1 R103-012-0000 1 R005-012-0000 1 R006-012-0000
M14 1 R001-014-0000 1 R002-014-0000 1 R007-014-0000 1 R003-014-0000 1 R103-014-0000 1 R005-014-0000 1 R006-014-0000
M16 1 R001-016-0000 1 R002-016-0000 1 R007-016-0000 1 R003-016-0000 1 R103-016-0000 1 R005-016-0000 1 R006-016-0000
M18 1 R001-018-0000 1 R002-018-0000 1 R007-018-0000 1 R003-018-0000 1 R103-018-0000 1 R005-018-0000 1 R006-018-0000
M20 1 R001-020-0000 1 R002-020-0000 1 R007-020-0000 1 R003-020-0000 1 R103-020-0000 1 R005-020-0000 1 R006-020-0000
M22 1 R001-022-0000 1 R002-022-0000 1 R003-022-0000 1 R103-022-0000 1 R005-022-0000 1 R006-022-0000
M24 1 R001-024-0000 1 R002-024-0000 1 R003-024-0000 1 R103-024-0000 1 R005-024-0000 1 R006-024-0000
M27 1 R001-027-0000 1 R003-027-0000 1 R005-027-0000 R006-027-0000
M30 1 R001-030-0000 1 R003-030-0000 1 R103-030-0000 1 R005-030-0000 1 R006-030-0000
M33 1 R001-033-0000 1 R006-033-0000
M36 1 R001-036-0000 1 R003-036-0000 1 R006-036-0000
M39 1 R001-039-0000
M42 1 R001-042-0000
M45 1 R001-045-0000
M48 1 R001-048-0000



Fine Thread
d1 4.6 10.9
Pkg. Order # Pkg. Order #
M8 x 1 1 R001-008-0001
M10 x 1 1 R001-010-0001
M10 x 1.25 1 R001-010-1.25 1 R006-010-1.25
M12 x 1.25 1 R001-012-1.25 1 R006-012-1.25
M14 x 1.5 1 R001-014-01.5 1 R006-014-01.5
M16 x 1.5 1 R001-016-01.5 1 R006-016-01.5
M18 x 1.5 1 R001-018-01.5 1 R006-018-01.5
M20 x 1.5 1 R001-020-01.5 1 R006-020-01.5
M22 x 1.5 1 R001-022-01.5 1 R006-022-01.5
M24 x 2 1 R001-024-0002 1 R006-024-0002



DIN 975 Full Threaded Rod with fine, coarse, unf, unc, un, bsw or acme threads



DIN975 Full Threaded Rod Available Diameter
D P Diameter
min max
M4 0.70 3.89 3.98
M5 0.80 4.84 4.97
M6 1.00 5.80 5.96
M8 1.25 7.77 7.96
M10 1.50 9.74 9.96
M12 1.75 11.71 11.95
M14 2.00 13.70 13.94
M16 2.00 15.70 15.94
M18 2.50 17.64 17.93
M20 2.50 19.64 19.93
M22 2.50 21.64 21.93
M24 3.00 23.60 23.92
M27 3.00 26.60 26.92
M30 3.50 29.54 29.92



Weight Chart of Din 975 Threaded Rod
Size Weight
M2 18.7
M2.5 30.0
M3 44.0
M3.5 60.0
M4 78.0
M5 124
M6 177
M8 319
M10 500
M12 725
M14 970
M16 1330
M18 1650
M20 2080
M22 2540
M24 3000
M27 3850
M30 4750
M33 5900
M36 6900
M39 8200
M42 9400
M45 11000
M48 12400



Check Available Material
  • DIN 975 Fully Threaded Rod, Steel
  • DIN 975 Fully Threaded Rod, Grade B7
  • DIN 975 Fully Threaded Rod, Class 4.6
  • DIN 975 Fully Threaded Rod, Class 4.8
  • DIN 975 Fully Threaded Rod, Class 8.8
  • DIN 975 Fully Threaded Rod, Class 10.9
  • DIN 975 Fully Threaded Rod, Class 12.9
  • DIN 975 Fully Threaded Rod, 300 Stainless (A1,A2, 18-8,304,310 etc.)
  • DIN 975 Fully Threaded Rod, 316, 317, A4 Stainless
  • DIN 975 Fully Threaded Rod, 400 Stainless (405, 410,416,420,430 etc.)
  • DIN 975 Fully Threaded Rod, Superalloy (Inconel, Hastelloy, Alloy 20)
  • DIN 975 Fully Threaded Rod, Aluminum
  • DIN 975 Fully Threaded Rod, Brass
  • DIN 975 Fully Threaded Rod, Nylon



Galvanized Grade 4.8 Threaded Rod Hardness



Hardness

PROPERTY CLASS



4.8



5.6



5.8



6.8

8.8



9.8



10.9



12.9

Up to M 16

Over M 16

Vickers Hardness

min.

130

155

160

190

250

255

290

320

385

max

250

320

336

360

380

435

Brinell Hardness

min.

124

147

152

181

319

242

266

295

353

max.

238

385

319

342

363

412



Rockwell Hardness

min.            HR

71

79

82

89

-

HRC

-

-

-

-

20

23

28

32

39

HR

95

99

-

max.           HRC

-

-

-

-

32

34

37

39

44

Yield Stress ReL. N/mm²

nom.

320

300

400

480

-

min.

340

300

420

480

-

Stress at permanent set limit N/mm²

nom.

-

640

720

900

1080

min.

-

640

660

720

940

1100



Length of DIN975/B7 8.8 Grade Thread Rod
Diameter Length
M3 1m
M4 1m
M5 1m
M6 1m
M6 3m
M8 1m
M8 3m
M10 1m
M10 2m
M10 3m
M12 1m
M12 2m
M12 3m
M14 1m
M16 1m
M16 2m
M16 3m
M18 1m
M20 1m
M20 2m
M20 3m
M22 1m
M24 1m



DIN 975/B7 8.8 and 4.8 Grade Threaded Rod as per American standard and metric specifications



see here BN - Standard chart of DIN975 Full Threaded Rod
BN - Standard Short Description Material Quality Surface
BN 413 - DIN 975 Threaded rod metric thread 1 meter Steel 4.6 / 4.8 plain
BN 419 - DIN 975 Threaded rod metric thread 1 meter Steel 4.6 / 4.8 zinc plated blue
BN 111 - DIN 975 Threaded rod metric thread 2 meter Steel 4.6 / 4.8 zinc plated blue
BN 1203 - DIN 975 Threaded rod metric thread 3 meter Steel 4.6 / 4.8 plain
BN 414 - DIN 975 Threaded rod with metric left-hand thread Steel 4.6 plain
BN 415 - DIN 975 Threaded rod with metric fine thread Steel 4.6 plain
BN 416 - UNC Threaded rod UNC Steel 4.6 plain
BN 418 - DIN 975 Threaded rod metric thread Steel 8.8 plain
BN 5269 - DIN 975 Threaded rod metric thread Steel 8.8 zinc plated blue
BN 420 Spindles with trapezoidal thread thread according DIN 103 - 7e Steel 4.6 plain
BN 423 Hex nuts ~1,5d with trapezoidal thread DIN 103 - 7H Steel 5 plain
BN 421 Round nuts ~1,5d with trapezoidal thread DIN 103 - 7H Steel 5 plain
BN 662 - DIN 975 Threaded rod metric thread 1 m Stainless steel A2
BN 663 - DIN 975 Threaded rod metric thread 1 m Stainless steel A4
BN 4877 - DIN 975 Threaded rod metric thread 2 m Stainless steel A2
BN 1072 - ~DIN 975 Threaded rod metric thread Polyamide PA 6.6 natural
BN 552 - ~DIN 975 Threaded rod metric thread Brass   plain



Threaded Rods Galvanized DIN 975 Property Strength class



Steel group



Property Strength class



Made From



Characteristics



Austenitic

50

A1. A2

Soft; cold worked. turned and soft pressed fasteners

70

A2. A4

Cold worked. normal strength formed fasteners

80

A2. A4

Extreme cold worked. high strength. special applications



Size table of 8.8 Grade DIN 975 Threaded Rod

Length

Material

Thread

Thread Type

PCs Weight

Size (Fast)

100 mm Stainless Steel A2 (18-8) M4-0.70 Coarse 0.07772 M4-0.70x100 MM
100 mm M5-0.80 0.12375 M5-0.80x100 MM
1.00 mm M5-0.80 N/A M5-0.80x1MM
100 mm M6-1.00 0.17702 M6-1.00x100 MM
1.00 mm M6-1.00 N/A M6-1.00x1MM
100 mm M8-1.25 0.31902 M8-1.25x100 MM
1.00 mm M8-1.25 N/A M8-1.25x1MM
100 mm M10-1.50 0.50002 M10-1.50x100 MM
1.00 mm M10-1.50 N/A M10-1.50x1MM
100 mm M12-1.75 0.72502 M12-1.75x100 MM
1.00 mm M12-1.75 N/A M12-1.75x1MM
100 mm M16-2.00 1.33002 M16-2.00x100 MM
1.00 mm M16-2.00 N/A M16-2.00x1MM
100 mm M20-2.50 2.08002 M20-2.50x100 MM
1.00 mm M20-2.50 N/A M20-2.50x1MM
100 mm M22-2.50 2.54002 M22-2.50x100 MM
100 mm M24-3.00 3.00002 M24-3.00x100 MM
1.00 mm M24-3.00 N/A M24-3.00x1MM



Stock list of Grade 4.8/6.8/8.8 Steel Full Thread Thread Rod DIN975

METER THREADED ROD DIN 975 A2-70 STAINLESS

Type

Diameter (mm)

Pitch

Length (mm)

Material

Finish

Package Quantity

M5-0.8 X 1 DIN 975 M5 Coarse 1 A2-70 Stainless Plain 30
M6-1.0 X 1 M6 1 30
M8-1.25 X 1 M8 1 20
M10-1.5 X 1 M10 1 20
M12-1.75 X 1 M12 1 12
M16-2.0 X 1 M16 1 8
M20-2.5 X 1 M20 1 6
M24-3.0 X 1 M24 1 4



why buy DIN975/B7 8.8 Grade Threaded Rod from raajsagar
  • Prompt shipment with professional documents
  • Many years of export experience;
  • Specifications list is available upon your request
  • High quality and competitive price.
  • Good after sales service. Any small problem happening will be solved at the most prompt time;
  • Custom packing, with photo before shipment
  • Welcome to send enquiry, we will reply soon.



Surface Finish of Din 975 Threaded Rod
  • Oxidized
  • Passivation
  • Electro Polished
  • Zinc Plating
  • Hot Dipped Galvanizing
  • Chrome Plating
  • Mirror Buffed
  • Epoxy Coating
  • Teflon Coating



DIN 975 Full Thread 4.8 Zinc Plate Threaded Rod Mechanical Properties





Steel group





Steel grade



Strength class

Screws. Nuts and Bolts

Tensile strength N/mm2

Tensile strength PSI



Dia range



Nut Load N/mm2



Austenitic



A2 and A4

50

500

70.000

<=M39

500

70

700

100.000

<=M20

700

80

800

118.000

<=M20

800



Chemical composition of Galvanized Black Oxide Grade 8.8 Thread Rod DIN975



Grade



USA Grade



Material designation



Material no.



C
%



Si
≤ %



Mn
≤ %



Cr
%



Mo
%



Ni
%





A 2





304



X 5Cr Ni 1810



1.4301


0.07



1.0



2.0

17.5
to 19.5



-

8.0
to 10.5



X 2 Cr Ni 1811



1.4306


0.03



1.0



2.0

18.0
to 20.0



-

10
to 12.0



X 8 Cr Ni 19/10



1.4303


0.07



1.0



2.0

17.0
to 19.0



-

11.0
to 13.0



A 4



316



X 5 Cr Ni Mo 1712



1.4401


0.07



1.0



2.0

16.5
to 18.5

2.0
to 2.5

10.0
to 13.0



X 2 Cr Ni Mo 1712



1.4404


0.03



1.0



2.0

16.5
to 18.5

2.0
to 2.5

10
to 13



DIN 975 Rod Dimensions
Thread size d Lenght Mass (7,85 kg/dm3), in kg per 1000 units
M2 - - 1000±10 18,7
M2,5 - - 1000±10 30
M3 - - 1000±10 44
(M3,5) - - 1000±10 60
M4 - - 1000±10 78
M5 - - 1000±10 124
M6 - - 1000±10 177
M8 M8x1 - 1000±10 319
M10 M10x1,25 M10x1 1000±10 500
M12 M12x1,25 M12x1,25 1000±10 725
(M14) (M14x1,5) - 1000±10 970
M16 M16x1,5 - 1000±10 1330
(M18) (M18x1,5) - 1000±10 1650
M20 M20x1,5 - 1000±10 2080
(M22) (M22x1,5) - 1000±10 2540
M24 M24x2 - 1000±10 3000
(M27) (M27x2) - 1000±10 3850
M30 M30x2 - 1000±10 4750
(M33) (M33x2) - 1000±10 5900
M36 M36x3 - 1000±10 3900
(M39) (M39x3) - 1000±10 8200
M42 M42x3 - 1000±10 9400
(M45) (M45x3) - 1000±10 11000
M48 M48x3 - 1000±10 12400
(M52) (M52x3) - 1000±10 14700
Application of DIN 975 Threaded Rod
  • Petrochemicals
  • Power Generation
  • Aircraft Exhaust Manifolds
  • Pharmaceuticals
